SANQPOWER Perkins Diesel Generating Set, power ranging from 9kva upto 2500kva.

About Perkins: for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 2,000 kW (5 - 2,800 hp) market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Perkins global product support is provided by 4,000 distribution, parts and service centers. Perkins distributor network provides support wherever needed around the world and an extremely high standard is set to ensure the distribution network provides an outstanding service to all customers.

50Hz
Genset Model	Standby Power	Prime  Power	Engine Model	Alternator Model	C/O of  engine	Genset Weight (Kg)		Genset overall LxWxH (MM)		Click for Detail Data
	kW/kVa	kW/kVa	Perkins	Stamford		Open type	Silent  type	Open Type	Silent type
SQP10	8/10	7/9	403A-11G1	PI044E	Wuxi	450	896	1260x630x730	2200x1033x1304
SQP10	8/10	7/9	403D-11G	PI044E	Wuxi	450	896	1500x650x1225	2200x1033x1304
SQP15	12/14.5	10.5/13.1	403D-15G	PI044F	Wuxi	496	956	1500×650×1225	2200×1033×1304
SQP15	12/14.5	10.5/13.1	403A-15G1	PI044F	Wuxi	496	956	1500×650×1225	2200×1033×1304
SQP16	13/16	12/15	403A-15G2	PI044F	Wuxi	496	956	1500×650×1225	2200×1033×1304
SQP22	18/22	16/20	404D-22G	PI144D	Wuxi	610	1070	1500×650×1225	2200×1033×1304
SQP22	18/22	16/20	404A-22G1	PI144D	Wuxi	610	1070	1500×650×1225	2200×1033×1304
SQP30	24/30	22/27	404D-22TG	PI144E	Wuxi	660	1087	1500×650×1225	2200×1033×1304
SQP33	26/33	24/30	1103A-33G	PI144G	UK/INDIA	780	1270	1650×750×1280	2300×1133×1376
SQP50	40/50	36/45	1103A-33TG1	UCI224D	UK/INDIA	887	1407	1650×750×1280	2300×1133×1376
SQP65	52/65	48/60	1103A-33TG2	UCI224F	UK/INDIA	908	1434	1650×750×1280	2300×1133×1376
SQP73	58/73	52/65	1104A-44TG1	UCI224F	Wuxi	923	1547	1750×850×1300	2300×1133×1376
SQP88	70/88	64/80	1104A-44TG2	UCI224G	Wuxi	1037	1560	1750×850×1300	2300×1133×1376
SQP88	70/88	64/80	1104C-44TAG1	UCI274C	Wuxi	1175	1735	1750×850×1300	2300×1133×1376
SQP110	88/110	80/100	1104C-44TAG2	UCI274C	Wuxi	1190	1750	2240×850×1320	2700×1133×1666
SQP150	120/150	110/135	1106A-70TG1	UCI274E	Wuxi	1760	2864	2900×900×1536	3600×1333×2040
SQP160	132/165	120/150	1106A-70TAG2	UCI274F	Wuxi	1760	2864	2900×900×1536	3600×1333×2040
SQP200	160/200	144/180	1106A-70TAG3	UCI274G	Wuxi	1796	2904	2900×900×1536	3600×1333×2040
SQP220	176/220	160/200	1106A-70TAG4	UCI274H	Wuxi	1830	2959	2900×900×1536	3600×1333×2040
SQP220	176/220	160/200	1506A-E88TAG1	UCI274H	USA	1830	2959	2900×900×1536	3600×1333×2040
SQP250	200/250	180/225	1506A-E88TAG2	UCDI274J	USA	2760	4500	3000×1200×2000	4100×1490×2000
SQP275	220/275	200/250	1506A-E88TAG3	UCDI274K	USA	2760	4500	3000×1200×2000	4100×1490×2000
SQP300	240/300	220/275	1506A-E88TAG4	HCI444D	USA	2860	4600	3000×1200×2000	4100×1490×2000
SQP330	264/330	240/300	1506A-E88TAG5	HCI444D	USA	2860	4600	3000×1200×2000	4100×1490×2000
SQP400	320/400	280/350	2206C-E13TAG2	HCI444E	USA	2932	4724	3200×1206×1980	4500×1583×2200
SQP450	360/450	320/400	2206C-E13TAG3	HCI444E	USA	3069	4860	3200×1206×1980	4500×1583×2200
SQP500	400/500	360/450	2506C-E15TAG1	HCI544C	USA	3400	5039	3500×1540×1850	4700×1583×2200
SQP550	440/550	400/500	2506C-E15TAG2	HCI544D	USA	3551	5166	3500×1540×1850	4700×1583×2200
SQP660	528/660	480/600	2806C-E18TAG1A	HCI544E	USA	3925	6041	3500×1540×2050	4700×1983×2200
SQP700	560/700	520/650	2806A-E18TAG2	HCI544F	USA	3925	6041	3500×1540×2050	4700×1983×2200
SQP820	660/825	600/750	4006-23TAG2A	HCI634G	UK/INDIA	5525	10370	4350×1750×2270	6058×2438×2591
SQP900	720/900	648/810	4006-23TAG3A	HCI634G	UK/INDIA	5570	10400	4350×1750×2270	6058×2438×2591

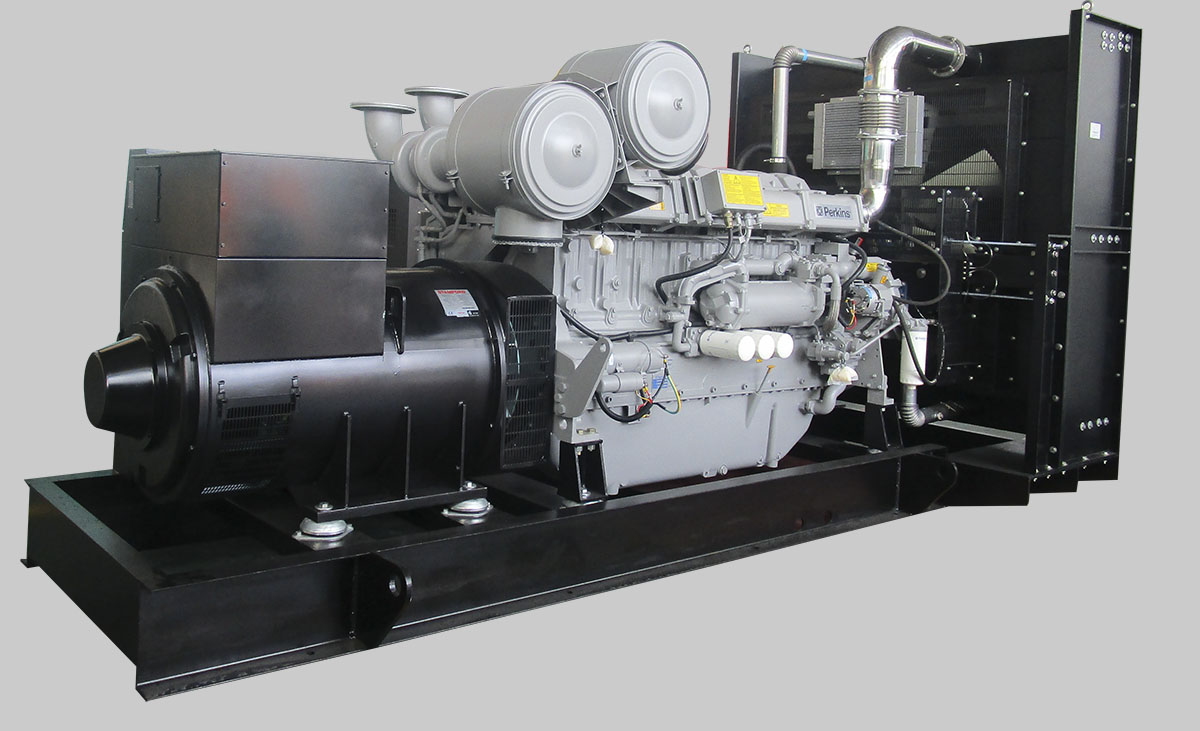

SQP1000	800/1000	720/900	4008TAG1A	HCI634H	UK/INDIA	6667	11667	4350×1750×2270	6058×2438×2591
SQP1100	880/1100	800/990	4008TAG2A	HCI634J	UK/INDIA	6792	12030	4350×1750×2270	6058×2438×2591
SQP1250	1000/1250	900/1125	4008-30TAG3	HCI634K	UK	6792	12030	4800×2200×2477	12192×2438×2896
SQP1375	1100/1375	1000/1250	4012-46TWG2A	LVI634G	UK/INDIA	9950	17950	4800×2200×2477	12192×2438×2896
SQP1500	1200/1500	1100/1375	4012-46TWG3A	PI734B	UK	10205	18205	4800×2200×2477	12192×2438×2896
SQP1650	1320/1650	1200/1500	4012-46TAG2A	PI734C	UK/INDIA	10435	18435	4800×2200×2477	12192×2438×2896
SQP1875	1500/1875	1360/1700	4012-46TAG3A	PI734E	UK/INDIA	11200	19200	4800×2200×2477	12192×2438×2896
SQP2000	1600/2000	1440/1800	4016TAG1A	PI734E	UK	13780	21780	4800×2200×2477	12192×2438×2896
SQP2000	1600/2000	1440/1800	4016-61TRG1	PI734E	UK/INDIA	13780	21780	4800×2200×2477	12192×2438×2896
SQP2250	1800/2250	1600/2000	4016TAG2A	PI734F	UK	13875	21875	4800×2200×2477	12192×2438×2896
SQP2250	1800/2250	1600/2000	4016-61TRG2	PI734F	UK/INDIA	13875	21875	4800×2200×2477	12192×2438×2896
SQP2500	2000/2500	1800/2250	4016-61TRG3	PI734G	UK/INDIA	14900	22900	4800×2200×2477	12192×2438×2896

★Remarks:
 1. Above Sanqpower Gensets are based on 50HZ,1500 RPM, 400/230V, PF0.8 3phase 4wires  other special voltage can be satisfied.
2. Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
3. We observe the rights of data’s adjustment without prior notification.

60Hz
Genset Model	Standby Power	Prime  Power	Engine Model	Alternator Model	Fuel Consumption	Genset Weight (Kg)		Genset overall LxWxH (MM)		Click for Detail Data
	kW/kVa	kW/kVa	Perkins	Stamford	L/H	Open type	Silent  type	Open Type	Silent type
SQP12-6	10/12	8.8/11	403D-11G	PI044E	Wuxi	436	946	1500×650×1225	2200×1033×1306
SQP17-6	14/18	13/16	403D-15G	PI044F	Wuxi	510	1010	1500x650x1225	2200x1033x1306
SQP20-6	16/20	14/18	403A-15G2	PI044F	Wuxi	620	1140	1500×650×1225	2200×1033×1306
SQP27-6	21/27	19/24	404D-22G	PI144D	Wuxi	620	1140	1500×650×1225	2200×1033×1306
SQP36-6	28/36	25/31	404D-22TG	PI144E	Wuxi	670	1170	1500×650×1225	2200×1033×1306
SQP38-6	30/38	27/34	1103A-33G	PI144G	UK/INDIA	670	1170	1500×650×1225	2200×1033×1306
SQP60-6	47/60	42/53	1103A-33TG1	PI144K	UK/INDIA	900	1490	1650×750×1280	2300×1133×1380
SQP75-6	60/75	54/68	1103A-33TG2	UCI224E	UK/INDIA	910	1484	1650×750×1280	2300×1133×1376
SQP85-6	68/85	62/77	1104A-44TG1	UCI224F	Wuxi	789	1553	1750×850×1300	2300×1133×1376
SQP100-6	80/100	72/90	1104C-44TAG1	UCI224F	Wuxi	805	1597	1750×850×1300	2300×1133×1376
SQP100-6	80/100	72/90	1104A-44TG2	UCI224F	Wuxi	1014	1805	2240×850×1320	2700×1133×1666
SQP127-6	100/127	90/112	1104C-44TAG2	UCI274C	Wuxi	1254	1805	2240×850×1320	2700×1133×1666
SQP165-6	135/169	122/152	1106A-70TG1	UCI274E	Wuxi	1710	2820	2900×900×1536	3600×1333×2040
SQP188-6	150/188	136/170	1106A-70TAG2	UCI274E	Wuxi	1725	2845	2900×900×1536	3600×1333×2040
SQP220-6	176/220	160/200	1106A-70TAG3	UCI274F	Wuxi	1840	2914	2900×900×1536	3600×1333×2040
SQP275-6	220/275	200/250	1506A-E88TAG2	UCI274H	USA	2760	4500	3000×1200×2000	4100×1490×2000
SQP313-6	250/313	225/282	1506A-E88TAG3	UCDI274J	USA	2760	4500	3000×1200×2000	4100×1490×2000
SQP375-6	300/375	270/338	1506A-E88TAG5	HCI444D	USA	2810	4600	3000×1200×2000	4100×1490×2000
SQP438-6	352/438	320/400	2206C-E13TAG2	HCI444ES	USA	2955	4774	3200×1206×1980	4500×1583×2200
SQP500-6	400/500	365/465	2206C-E13TAG3	HCI444FS	USA	2985	4800	3200×1206×1980	4500×1583×2200
SQP575-6	460/575	410/512	2506C-E15TAG1	HCI544C	USA	3410	5100	3500×1540×1850	4700×1583×2200
SQP625-6	500/624	450/560	2506C-E15TAG2	HCI544C	USA	3550	5216	3500×1540×1850	4700×1583×2200
SQP688-6	550/688	500/625	2806C-E18TAG1A	HCI544D	USA	3680	5911	3500×1540×2050	4700×1983×2200
SQP750-6	600/750	552/690	2806C-E18TAG2	HCI544E	USA	3769	5960	3500×1540×2050	4700×1983×2200
SQP825-6	660/825	600/725	4006-23TAG2A	HCI544E	UK/INDIA	5300	10172	4350×1750×2270	6058×2438×2591
SQP944-6	735/944	680/850	4006-23TAG3A	LVI634B	UK/INDIA	5600	10420	4350×1750×2270	6058×2438×2591
SQP1100-6	880/1100	800/1000	4008TAG2	HCI634G	UK/INDIA	6700	11717	4700×2070×2414	6058×2438×2591
SQP1375-6	1120/1400	1002/1252	4012-46TWG2A	HCI634J	UK/INDIA	9750	17800	4700×2200×2477	12192×2438×2896
SQP1675-6	1340/1675	1200/1500	4012-46TAG2A	PI374A	UK/INDIA	10100	18100	4800×2200×2477	12192×2438×2896
SQP1880-6	1500/1880	1364/1705	4012-46TAG3A	PI374C	UK/INDIA	10500	18485	4900×2200×2477	12192×2438×2896

★Remarks:
1. Above Sanqpower Gensets are based on 60HZ,1800 RPM, 480/277V, PF0.8 3phase 4wires  other special voltage can be satisfied.
2. Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
3. We observe the rights of data’s adjustment without prior notification.
