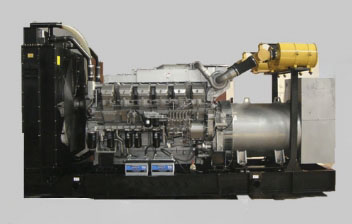

Powered by Mitsubishi Japan
Engine features:
• 6~16 serialized cylinders, universal primary components and reduced parts to simplify parts supply;
• Equipped with a variety of auxiliary apparatus and components for various purposes; • Efficient turbocharger;
• Driven by air motor or electric motor. Some models may be started directly with compressed air.
• Able to be run under relatively humid conditions or at high
| 50HZ | |||||||||
Genset Model | Standby Power kW/kVa | Prime Power kW/kVa | Engine Model | Alternator Model | Cylinders | Fuel Consumption (L/H) | Genset Weight (KG) | Dimension (L×W×H) mm | Click for Detail Data |
SQIM660 | 532/660 | 488/600 | S6R PTA | HCI544E | 6L | 125 | 4750 | 3560×1420×2020 | |
| SQIM750 | 600/750 | 550/675 | S6R2 PTA | HCI544F | 6L | 138 | 5000 | 3560×1420×2020 | |
| SQIM825 | 660/825 | 600/750 | S6R2 PTAA | LVI634B | 6L | 179 | 5350 | 4080×1715×1985 | |
| SQIM860 | 688/860 | 648/810 | S12A2 PTA | HCI634G | 12L | 166 | 6420 | 4050×1600×2120 | |
| SQIM1100 | 880/1100 | 800/1000 | S12H PTA | HCI634J | 12L | 177 | 8000 | 4400×1756×2440 | |
| SQIM1312 | 1050/1312 | 1000/1250 | S12R PTA | LVI634G | 12L | 246 | 10000 | 4515×2200×2510 | |
| SQIM1500 | 1200/1500 | 1120/1400 | S12R PTA2 | PI734B | 12L | 274 | 10500 | 4515×2200×2510 | |
| SQIM1650 | 1328/1650 | 1240/1550 | S12R PTAA2 | PI734C | 12L | 290 | 12000 | 4920×2192×2810 | |
| SQIM1925 | 1540/1925 | 1400/1750 | S16R PTA | PI734D | 16L | 333 | 13800 | 5470×2200×2810 | |
| SQIM2060 | 1648/2060 | 1520/1900 | S16R PTA2 | PI734E | 16L | 380 | 14100 | 5440×2200×2810 | |
| SQIM2250 | 1800/2250 | 1600/2000 | S16R PTAA2 | PI734F | 16L | 420 | 14500 | 5700×2392×2810 | |
| SQIM2500 | 2000/2500 | 1800/2250 | S16R2 PTAW | PI734G | 16L | 473 | 16500 | 6075×2200×2566 | |
★Remarks:
Above Sanqpower Gensets are based on 1500 RPM, 400/230V, PF0.8 3phase 4wires other special voltage can be satisfied.
Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
We observe the rights of data’s adjustment without prior notification.
